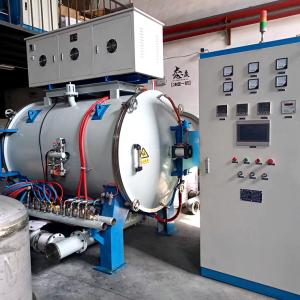

Graphite rod heating element high temperature vacuum furnace 2200 c

Name: Graphite rod heating element high temperature vacuum furnace 2200 c
Brand: Jingtan
Price: 12 USD

Packaging Details : wooden case packing

Supply Ability : 30 Piece/Pieces per Quarter

Price : USD12,000-100,000/SET

Brand Name : Jingtan

Certification : CE

MOQ : 1 set

Delivery Time : 60 days

Place of Origin : China

Payment Terms : L/C/T/T

place of origin : Hunan, China

type : Sintering furnace

usage : Powder Metallurgy

video outgoing-inspection : Provided

machinery test report : Provided

core components : PLC

brand name : OEM

voltage : 380

weight (t) : 2 T

power (kw) : 150

warranty : 1 Year

key selling points : Accurate temperature control

Maximum Use Temperature : 2400℃

High Temperature Volume : 12L,45L,375L,540L,3500L,10000L

Temperature Measurement accuracy : 0.2~0.75%

Temperature Control accuracy : ±1℃

Working atmosphere in furnace : vacuum,hydrogen,nitrogen,inert gases

Temperature uniformity : ≤±10℃

Temperature measurement : Infrared optical temperature measutement

Temperature Control : Program control and manual control

Temperature measurement range : 800~2400℃ or 0~2400℃

Limit heating rate : 75℃/min

Condition : New

Warranty of core components : 1 Year

Showroom Location : Uzbekistan, Tajikistan

Marketing Type : Hot Product

Applicable Industries : Cemented carbide, Copper-tungsten, metallurgical industry

Contact Now

Products Description

【Application】:

Vacuum/atmosphere sintering of cemented carbide, copper-tungsten alloy, tungsten, molybdenum, alnico-cobalt permanent magnet, SmCo5, Sm2Co17, Ndfeb, titanium alloy and other alloy materials.

Maximum Use Temperature	1600℃,2000℃,2400℃
High Temperature Volume	12L,45L,128L,192L,250L,375L,540L,648L	980L,1600L,2430L,3500L,10000L
Working atmosphere in furnace	· Vacuum,hydrogen, nitrogen,inert gases,etc
Temperature Uniformity	≤±10℃	≤±20℃

Graphite rod heating element high temperature vacuum furnace 2200 c

Advantage 1:

Vacuum sintering furnace is the temperature measurement, temperature control technology, intelligent, new material technology and furnace design technology that our engineers and technicians digest and absorb. It is a performance intelligent electric furnace that is especially suitable for cemented carbide industry (process permits can also be applied to other industries).

Advantage 2:

The intermediate frequency induction sintering furnace produced by our company is an intermittent gas (vacuum) protection furnace.
According to the needs of sintering process time, a single set of power supply can be configured with multiple electric furnaces, respectively for a single furnace to heat up and section of electric cooling, to achieve continuous work.

Features:

Ultra-high temperature furnace body within 2400℃ can fully meet the sintering of various materials. Using digital display
intelligent temperature control system, automatic precision to complete the temperature measurement and temperature control process, the system can be heated according to the given temperature curve, and can store 20 pieces of a total of 400 different
process heating curve.
Adopt internal circulation pure water cooling system, digital flow monitoring system
High performance medium frequency contactor is used for automatic conversion of furnace body. Comprehensive PLC water, electricity, gas automatic control and protection system.
